Beam Clamp/Hinged Split Ring/Beam Ceiling Flange
Overview:

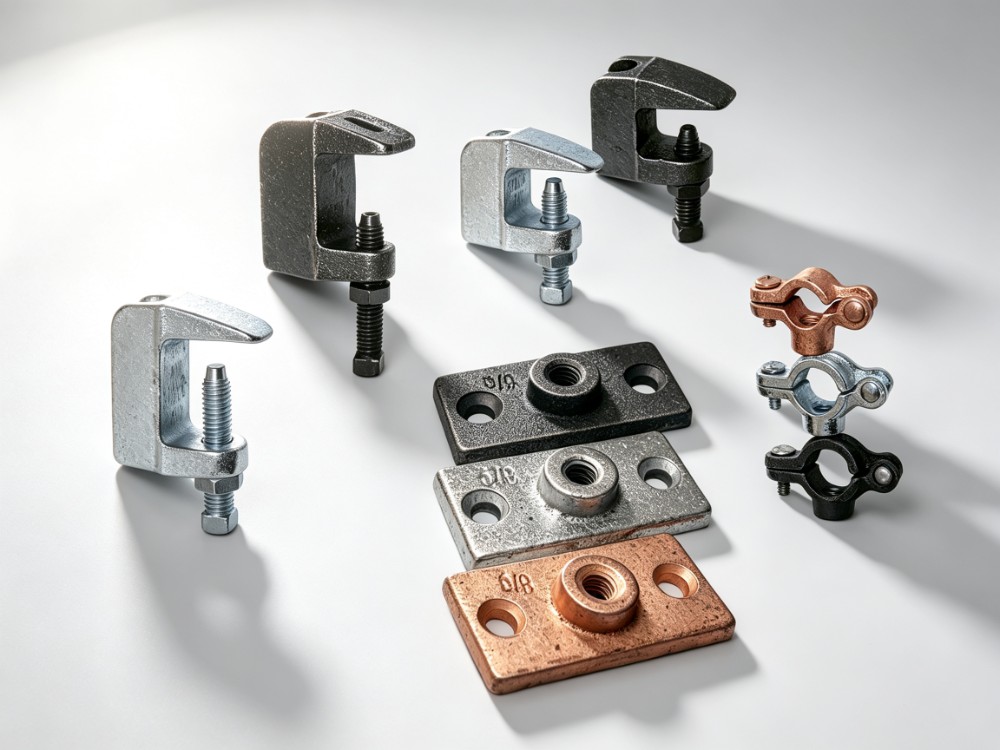

This series of malleable & ductile iron pipe hanging components includes Beam Clamp, Hinged Split Ring and Beam Ceiling Flange. Manufactured per MSS SP‑58 industry standard. Available in plain black finish, zinc‑plated and copper finish options.
These fittings are widely used for overhead pipe suspension on steel beams and ceilings within fire‑protection, HVAC and plumbing systems. Beam clamps fasten directly onto the flange of I‑beams without welding or drilling. Hinged split rings serve as pipe hangers to support horizontal piping runs. Beam ceiling flanges provide threaded base connection points for suspension rods on beam or ceiling surfaces. Approved for fire‑safety projects with UL and FM certification.
Key Features:
- Material: Malleable iron / Ductile iron conforming to ASTM A47 Grade32510, ASTM A536
- Surface finish options: Plain black, zinc‑plated, copper finish
- Industry standard: Designed in accordance with MSS SP‑58
- Certification: UL & FM approved for fire‑protection piping applications
- Beam Clamp: Quick mounting on I‑beam flanges; no‑drilling, no‑welding required for steel beam installation
- Hinged Split Ring: Hinged split‑type pipe hanger, easy opening for pipe installation and maintenance
- Beam Ceiling Flange: Flat base threaded flange, creates stable suspension rod anchor point for ceiling mounting
- Wide range of rod thread sizes and working load ratings to suit different pipe dimensions
- Suitable for overhead suspension of fire‑protection, HVAC, plumbing and mechanical service piping systems
