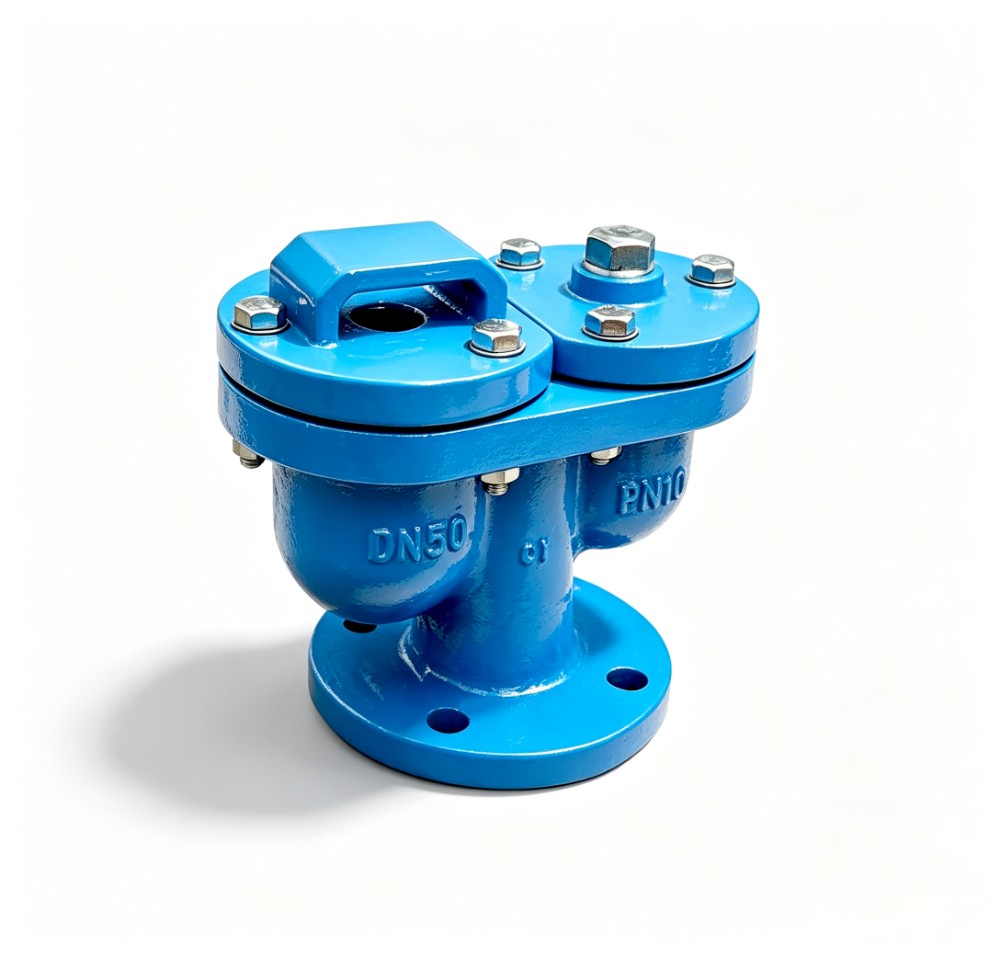

Double Orifice Air Release Valve (EN 1074-4)
The large orifice rapidly evacuates accumulated air when a pipeline is being filled, preventing air locks and permitting fast, safe filling. It also opens to admit large volumes of air during draining or pump shutdown, protecting the pipeline against vacuum formation and collapse. The small orifice operates under full working pressure, automatically venting micro-bubbles and trapped air pockets that collect at high points, maintaining flow efficiency and reducing friction loss, corrosion, and water hammer risk.
The valve body and covers are cast in high-grade ductile iron (GGG50). Two independent float balls — one large, one small, in durable ABS — control the two orifices respectively, each closing drip-tight against its NBR seal when water rises. Carbon steel fasteners and nylon millpads complete a robust, field-proven assembly. Flanged ends per EN 1092-2 and pressure ratings of PN10 / PN16 make it suitable for water supply and wastewater networks, with every unit pressure-tested to EN 12266-1 before shipment.
- Size Range: DN50–DN150
- Double Orifice Design: Per EN 1074-4, combines a large orifice (bulk air) and a small orifice (pressure-rated venting) in one body.
-
Three Functions in One Valve:
- Bulk air discharge — Fast air evacuation during pipeline filling
- Air admission / vacuum relief — Protects against vacuum collapse during draining or pump shutdown
- Continuous air release: Automatically vents trapped air under operating pressure
- Independent Dual Floats: Separate large and small float balls (ABS) ensure precise, reliable, drip-tight closure of each orifice.
- Robust Construction: Ductile iron body and covers (GGG50), carbon steel bolts, and nylon millpads.
- NBR Sealing Elements: NBR gaskets provide durable, elastic, long-life sealing.
- Pressure Ratings PN10 / PN16: Suitable for water supply, wastewater, and irrigation.
- Standard Flanged Ends: Flanges drilled to EN 1092-2 for direct installation.
- Bubble-Tight Sealing: Float-actuated closure maintains a zero-leak seal under full operating pressure.
- Tested to International Standard: Pressure-tested to EN 12266-1 before shipment.
