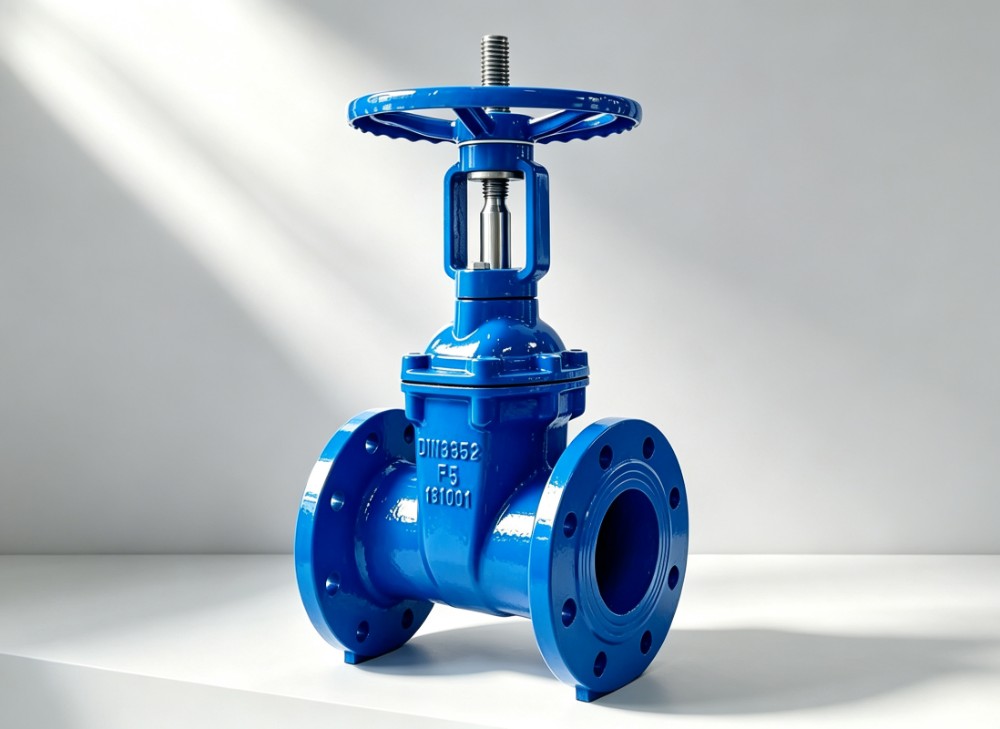

F5 Resilient Seated Gate Valve (OS&Y) DIN 3352
Our F5 resilient seated gate valve is designed and manufactured to DIN 3352, with face-to-face dimensions per DIN 3202-1 (Series F5). The outside screw and yoke (OS&Y) design places the stem threads outside the pressure boundary, making valve position visible at a glance and protecting the stem from buried or corrosive media — ideal for above-ground and valve chamber installations.
The ductile iron body, bonnet, and yoke are cast from high-grade GGG50 for strength and long service life. The wedge is ductile iron fully encapsulated in EPDM, providing a bubble-tight shutoff against zero pressure in either flow direction. The stem is precision-machined from stainless steel 2Cr13, with a brass stem nut and brass seal ring for smooth, reliable handwheel operation. All sealing elements are EPDM for durable water service.
With flanged ends drilled to EN 1092-2 and rated for PN10 / PN16, this valve covers the wide size range from DN40 to DN600. All wetted surfaces are protected by a blue fusion-bonded epoxy coating, and every valve is pressure-tested to EN 12266-1 before shipment.
- Size Range: DN40–DN600
- OS&Y Rising Stem: Stem threads outside the yoke; valve position visible at a glance for above-ground service.
- F5 Face-to-Face: Per DIN 3202-1 (Series F5), suitable for replacement where a longer body is required.
- Bubble-Tight Shutoff: Ductile iron wedge fully encapsulated in EPDM provides drop-tight sealing in both flow directions.
- Precision Stainless Stem: Stem machined from stainless steel 2Cr13 for corrosion resistance and long operating life.
- Brass Stem Nut & Seal Ring: Smooth, low-torque operation with reliable sealing.
- Superior Castings: Body, bonnet, yoke, and handwheel in ductile iron GGG50.
- DIN Standard Interchangeability: Design per DIN 3352; flanged ends per EN 1092-2.
- Pressure Ratings PN10 / PN16: Suitable for water supply, wastewater, and general industrial systems.
- Corrosion Protection: Blue fusion-bonded epoxy coating on all wetted surfaces.
- Tested to International Standard: 100% pressure-tested to EN 12266-1 before shipment.
