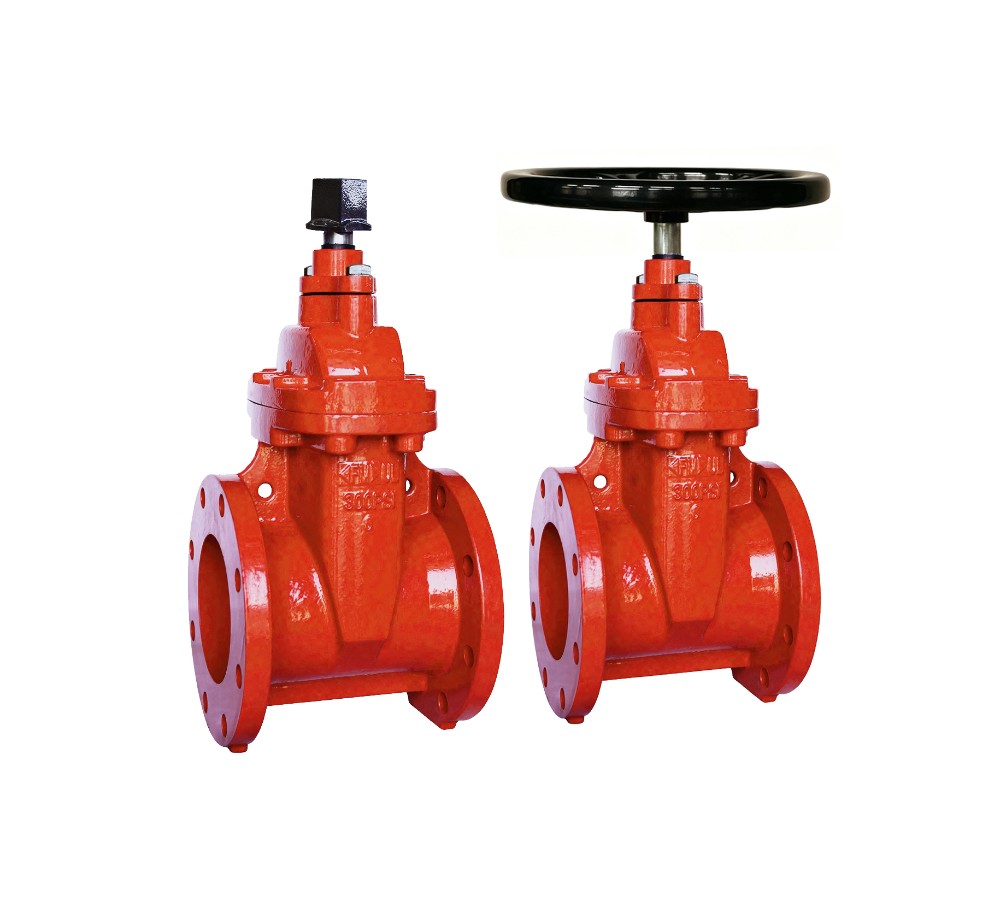

AWWA C515 NRS FLG x FLG Gate Valve With 2
Overview:
The AWWA C515 NRS FLG x FLG Gate Valve with 2" OP Nut (JKDZ45F) is a reliable and high-performance gate valve designed for use in municipal, industrial, and commercial water systems.
Featuring a non-rising stem (NRS) design and flanged connections, it provides durable flow control for high-pressure applications.
Key Features:
- Size Range: 2.5" - 12" (up to 24" available upon request)
- Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
- Certification: Approved by UL, FM, and NSF for safety and quality
- Design Standards: Flange to ASME B16.1 Class 125 and ASME B16.42 Class 150
- Pressure Rating: 300 PSI for sizes 2.5" - 12", 250 PSI for sizes 14" - 24" upon request
- Connection Type: Flanged connection
- Operating Temperature: 32℉ - 176℉
- Special Features: Equipped with a 2" OP nut for easy operation in water distribution and control systems
- Applications: Ideal for water distribution systems, wastewater treatment plants, and industrial flow control applications
