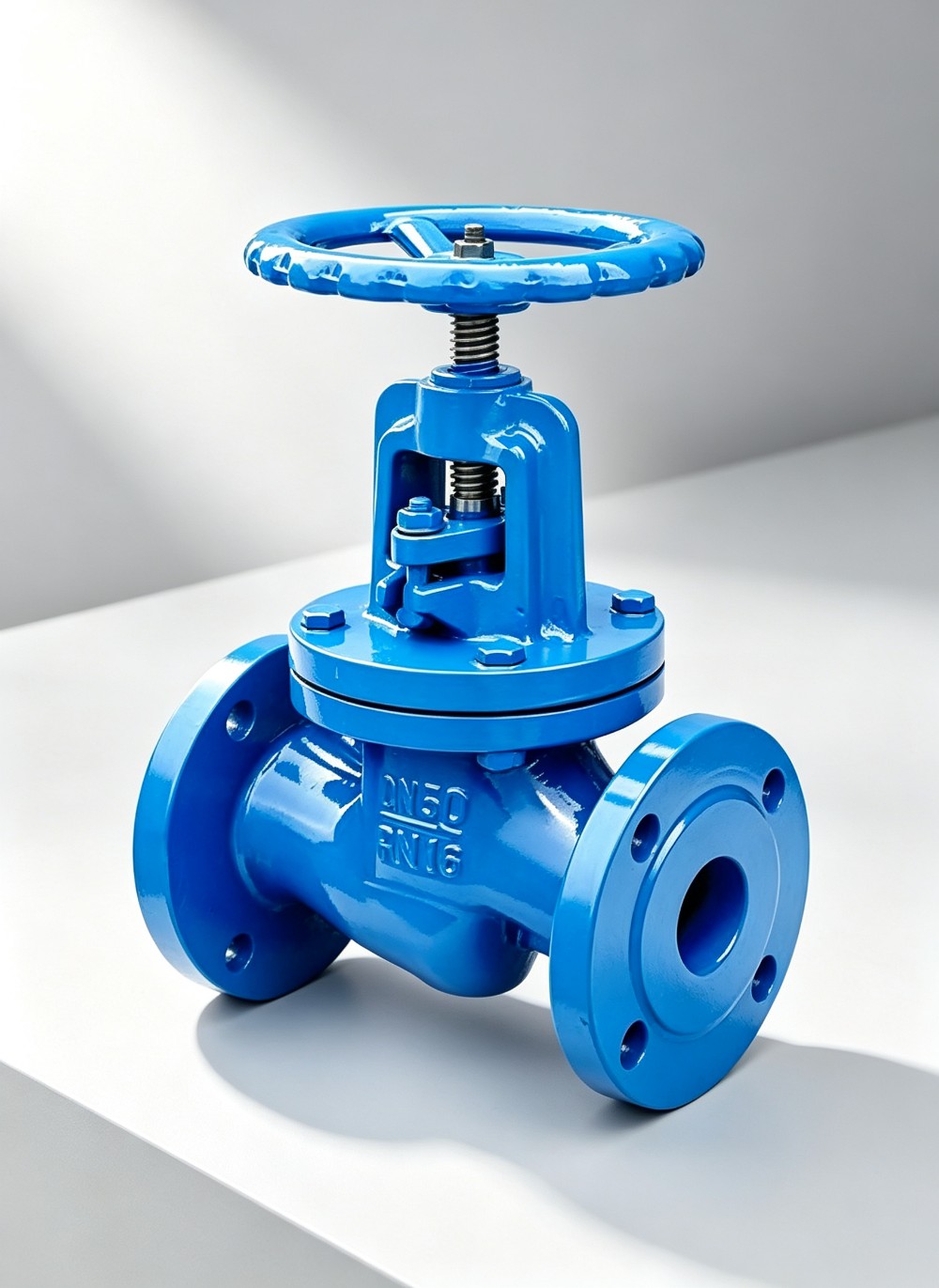

Our DIN 3356 F2 globe valve is designed and manufactured to DIN 3356, with face-to-face dimensions per DIN 3202 (Series F2). Unlike a gate valve, the globe valve uses a linear-motion disc that moves perpendicular to the flow path, making it ideally suited for throttling, regulating, and frequent on-off service where precise flow control is required.

The ductile iron body and bonnet are cast from high-grade GGG50 for strength and long service life. The outside screw and yoke (OS&Y) rising stem keeps stem threads outside the pressure boundary, protecting them from the medium and providing clear visual indication of valve position. The stem is machined from stainless steel 2Cr13, with a brass stem nut for smooth, reliable handwheel operation.

Two trim options are available to suit the application: stainless steel trim (body seat ring and disc in stainless steel 2Cr13) for durability in general water service, or brass trim (seat rings and disc in brass) for lower-temperature and clean-water duties. With flanged ends drilled to EN 1092-2 and rated for PN16, all wetted surfaces are protected by a blue fusion-bonded epoxy coating, and every valve is pressure-tested before shipment.
