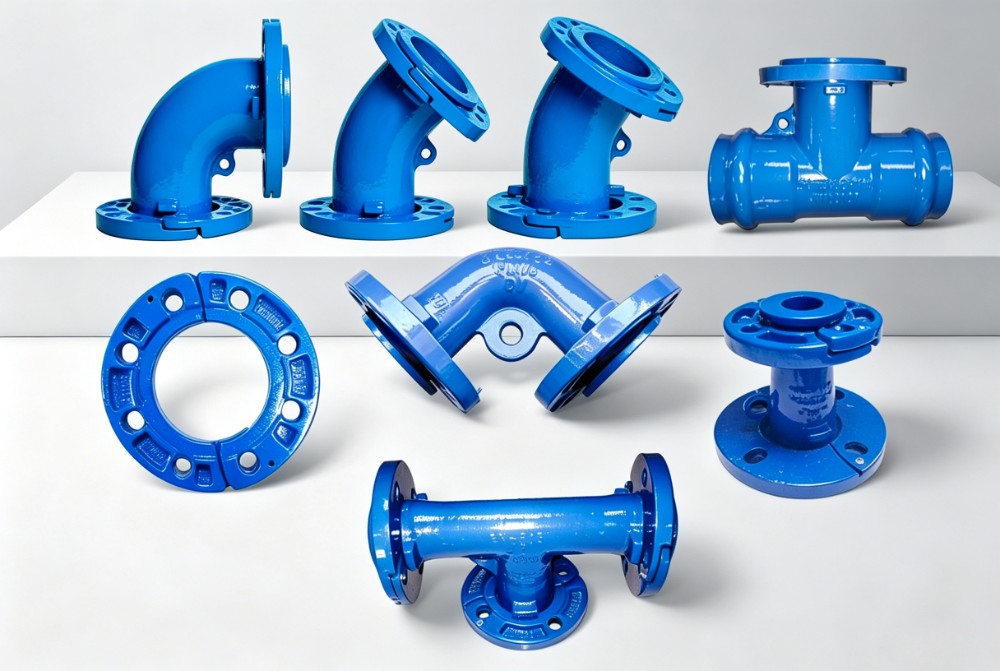

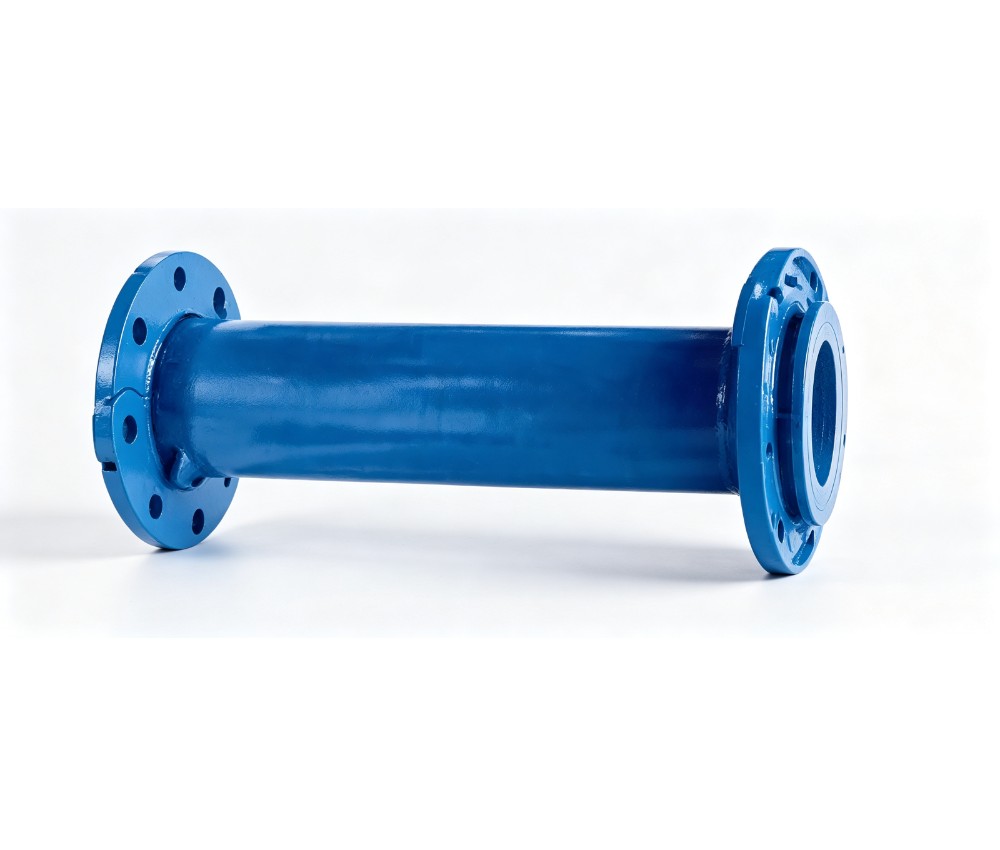

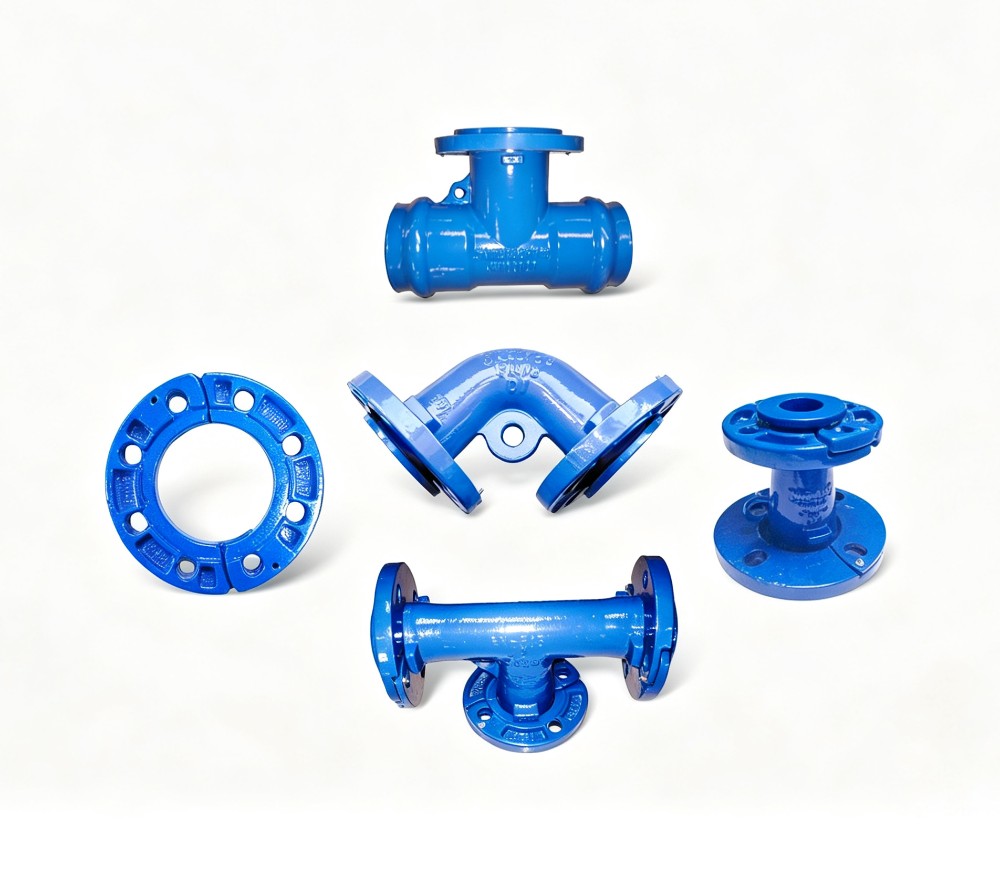

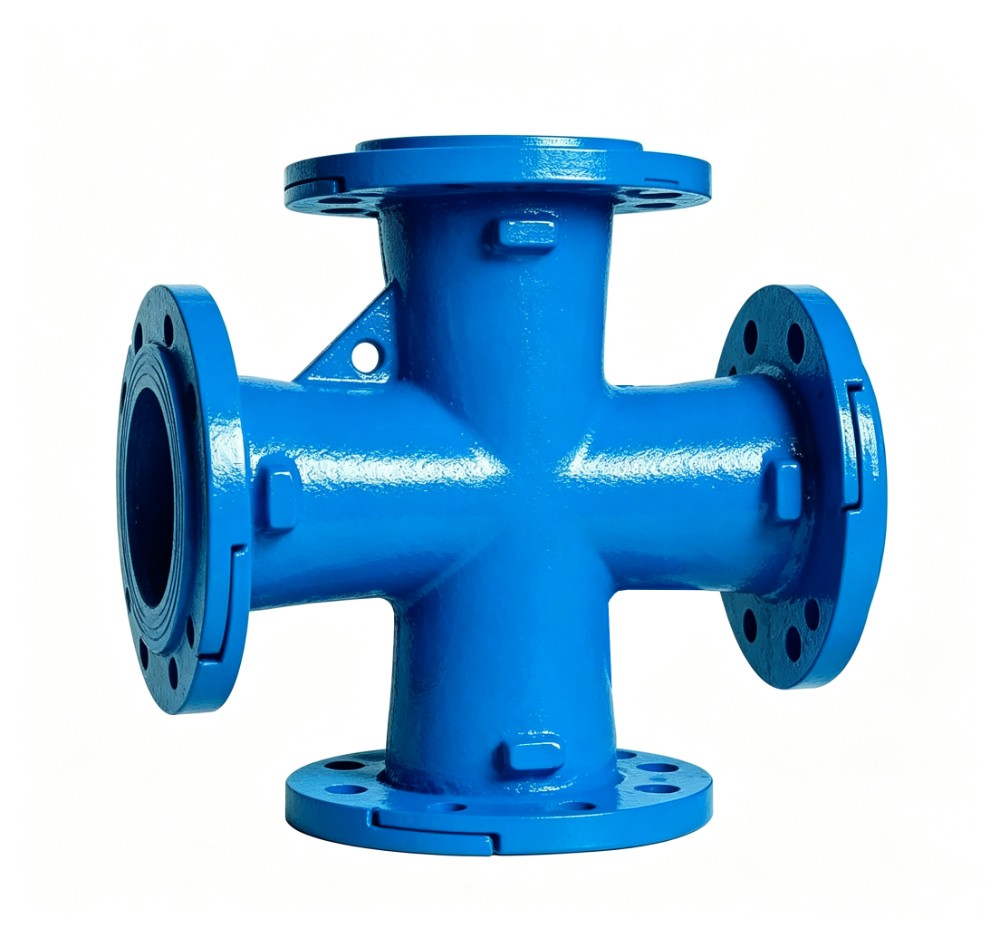

Ductile Iron Loose Flanged Fittings
Our ductile iron loose flanged fittings feature a rotatable flange that is not cast integrally with the fitting body, allowing 360° free rotation for perfect bolt hole alignment during installation. The fitting body is cast from high-grade ductile iron in accordance with ISO 2531 / EN 545, delivering the strength and durability required for demanding water and industrial applications.
The loose flange design solves one of the most common problems in on-site installation — misaligned bolt holes. Because the flange turns independently, installers can align it precisely with valves, pumps, and mating flanges without rotating the pipe or applying torsional force to the pipeline. This saves significant installation time and eliminates the stress that twisting can impose on pipe joints and gaskets.
These fittings provide a practical, economical connection between ductile iron, steel, PVC, and HDPE pipe systems and flanged equipment. They are widely used to connect plastic pipe to flanged valves, pumps, hydrants, and tanks, and are equally suited to water supply, irrigation, sewage, and industrial piping where frequent disassembly and maintenance access are required.

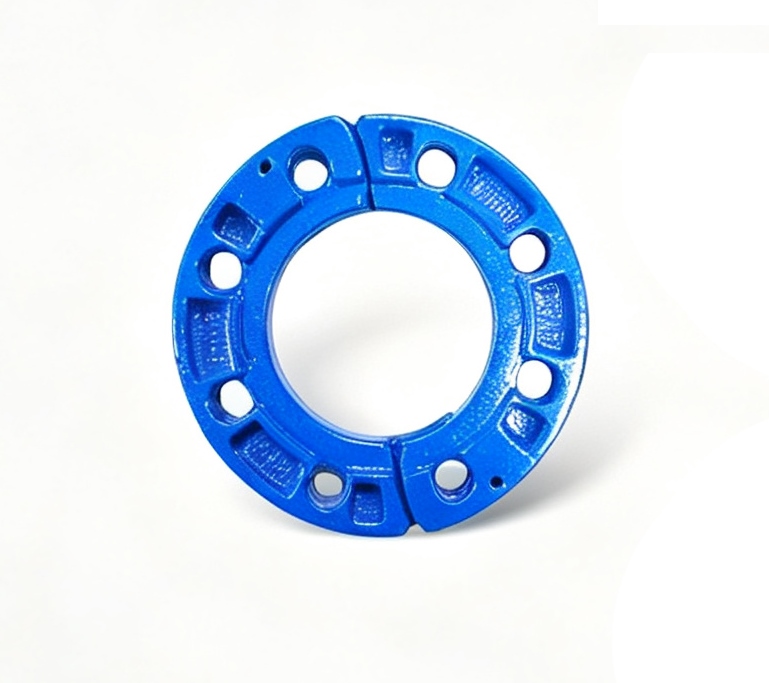

- Rotatable Loose Flange — Flange rotates freely 360° for fast, effortless bolt hole alignment in trenches and confined spaces.
- No Torsional Stress — Connection is made without rotating the pipe, protecting joints, gaskets, and the pipe itself from twisting damage.
- Superior Material — Ductile iron body per ISO 2531 / EN 545, offering high tensile strength, ductility, and impact resistance.
- Standard Flange Drilling — Flange dimensions and bolt holes conform to EN 1092-1 (ASME B16.1 available on request), ensuring compatibility with standard flanged equipment.
- Multi-Material Compatibility — Ideal for connecting PVC, HDPE, ductile iron, and steel pipe to flanged valves, pumps, hydrants, and tanks.
- Reliable Sealing — Supplied with EPDM or NBR gaskets for leak-tight, maintenance-friendly joints.
- Corrosion Protection — Fusion-bonded epoxy or asphaltic exterior coating with optional cement mortar lining for long service life.
- 100% Hydrostatically Tested — Every fitting is pressure-tested before shipment to guarantee leak-tight performance.
- Easy Installation & Maintenance — Simple bolted connection allows quick assembly, disassembly, and component replacement without cutting pipe.
- Proven in Field Service — Dependable performance in water supply, irrigation, sewage, and industrial piping systems worldwide.
