Quick Flange Adaptor for PVC/PE
Overview:
Our ductile iron quick flange adaptor provides a fast, reliable connection between PVC or PE (HDPE) pressure pipes and flanged valves, pumps, hydrants, and equipment. The adaptor slides over the outside of the plastic pipe and bolts to the mating flange — no welding, threading, or specialized tools required. It is available in two configurations matched to the pipe material:

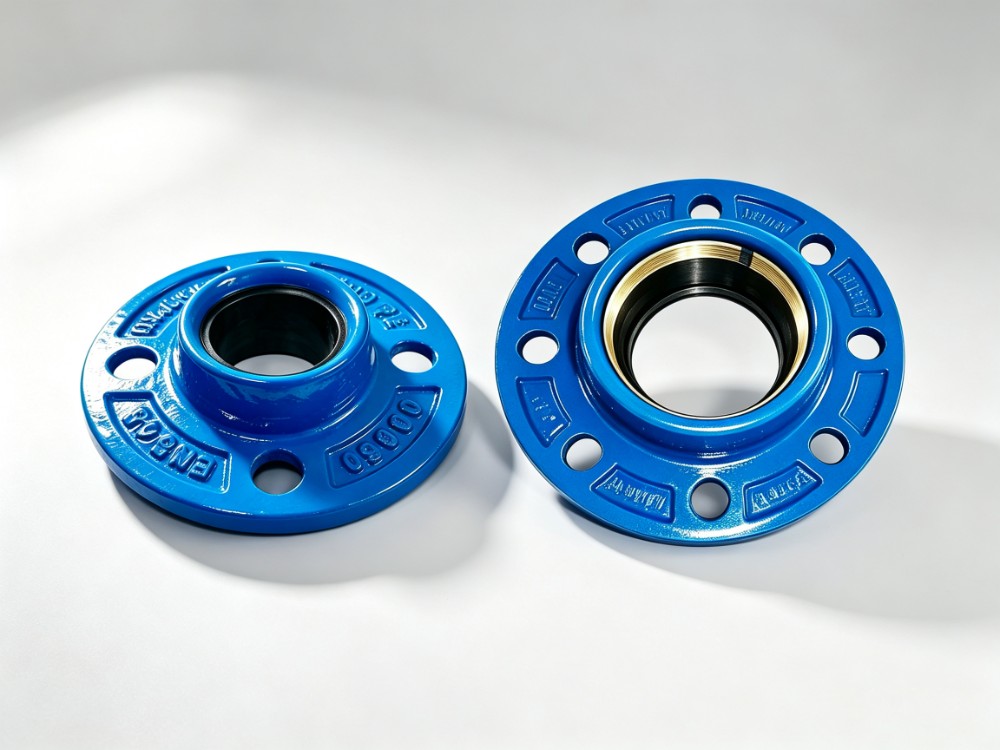

- PVC Quick Flange Adaptor — flange body + EPDM rubber gasket. Designed for rigid PVC pressure pipes, which have a stable outside diameter; the gasket alone compresses uniformly to create a dependable, watertight seal.
- PE Quick Flange Adaptor — flange body + brass sealing (grip) ring + EPDM rubber gasket. Designed for softer PE/HDPE pipes, where the brass ring bites into the pipe wall to provide positive restraint against pull-out under pressure.
Both versions are manufactured in high-grade ductile iron (GGG50) and finished in a blue fusion-bonded epoxy coating (250 µm), approved for potable water service, for long underground service life.
Key Features:
- Size Range: DN50-DN400
- Two Configurations on One Product: PVC version (flange body + EPDM gasket) and PE version (flange body + brass sealing ring + EPDM gasket), matched to your pipe material.
- Purpose-Built for Plastic Pipe: Connects both PVC and PE/HDPE pressure pipes directly to flanged valves, pumps, and equipment.
- Fast, Simple Installation: Slide over the pipe, tighten the bolts, and bolt the flange — no welding or threading.
- Positive Restraint for PE Pipe: PE version includes a brass grip ring that locks into the pipe wall and prevents pull-out under pressure.
- Superior Material: Ductile iron body (GGG50) per EN 1563 / ISO 1083.
- Leak-Tight Sealing: EPDM rubber gasket per EN 681-1 provides a reliable, flexible seal under pressure.
- Pressure Ratings PN10 / PN16: Available in standard pressure classes.
- Universal Flange Drilling: Flange holes to EN 1092-1, BS 4504, or ANSI B16.1 patterns as required.
- Corrosion Protection: 250 µm blue fusion-bonded epoxy coating, potable water approved.
- 100% Hydrostatically Tested: Every unit pressure-tested before shipment.
